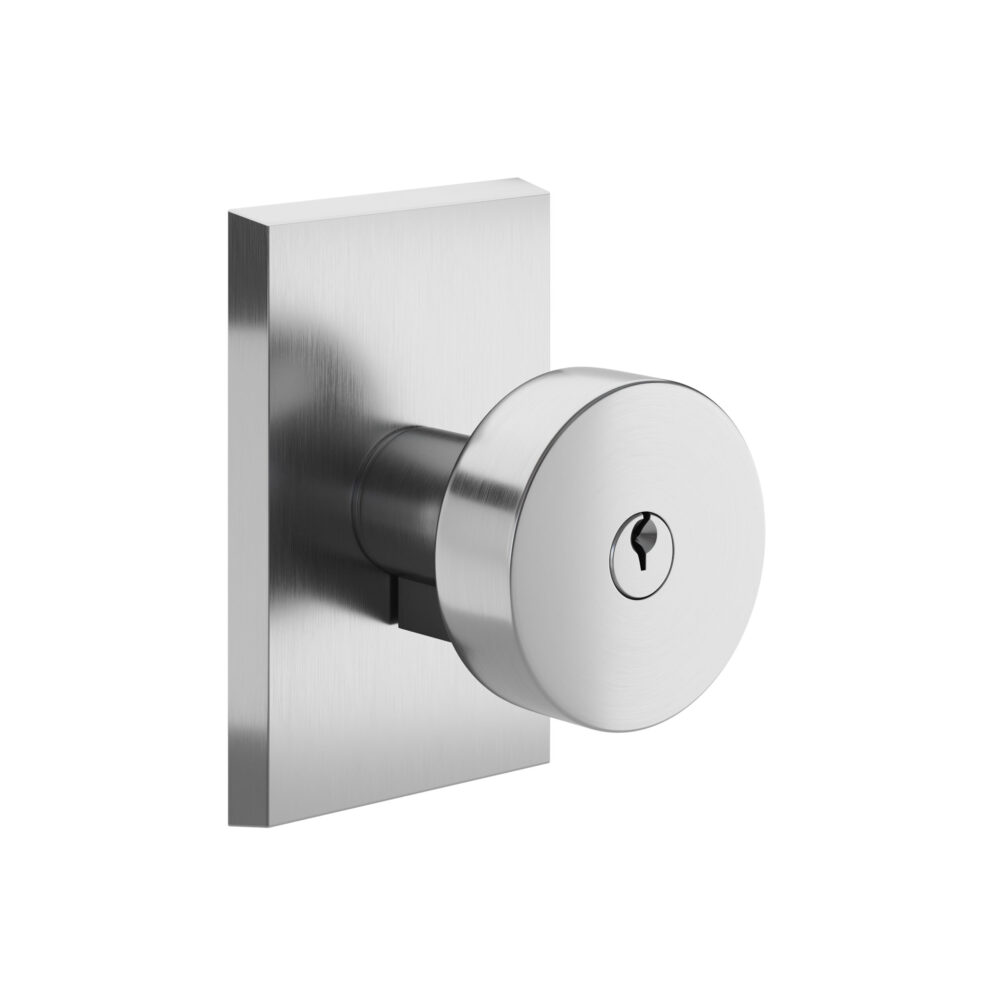

Bronzite rectangle rosette entry satin nickel knob

Item #: LCGK10NSN
Finishes Additional finishes are available upon request Satin Nickel
Finish image
Dull Black
Finish image
Satin Brass
Finish image
Bright Chrome
Finish image
Satin Nickel
Function Image
Entry Outside: lock & unlock with KEY. Inside: lock & unlock with TURN PIECE
Outside: lock and unlock with key Inside: lock and unlock with turn piece Usage: front door entrances i.e. homes, garages etc. Area: Interior & Commercial
Function Image
Privacy Inside: lock with push button . [when locked it can be unlocked from the outside with an emergency pin].
Outside: unlock with emergency pin only. Inside: lock with push button. Usage: bedrooms, bathrooms, dressing rooms, etc. Area: interior
Function Image
Passage Gives you free access with no locking function. It has turning levers on both sides.
Outside/Inside: gives you free access with no locking function. It has turning levers on both sides. Usage: closets with single doors, children bedrooms Area: interior
Function Image
Dummy DUMMY Lever or Knob with no function
Outside/Inside: no-function. Used to pull door open. Usage: aesthetics, double door closets, etc. Area: interior
Function Image
Keyed Different Each lock has its separate key.
Function Image
Keyed Alike All locks have one key.

Create new list

List Name You have to provide name for your wishlist.
SAVE LIST loader

GK100
Bronzite (Rectangle)

Simply alluring, Bronzite as learned that she can do no wrong. Featuring a flattened disc knob that twists easily under your palm and feels cool and smooth to the touch, Bronzite reminds you of your favorite piece of jewelry — the one that’s simple and classy enough to suit every occasion. You and she feel perfectly comfortable together.

Specifications

LOCK MEASUREMENTS

  • Lever Length The distance of the longest side of the handle
    2.24"
  • Lever projection The distance from the door surface to the most outward point of the handle
    2.60"
  • Lever Clearance The distance from the door surface to the most inward point of the handle
    1.75"
  • Rosette height The distance from the top to the bottom of the rosette
    4.96"
  • Rosette width The distance from side to side of the rosette
    2.62"
  • Rosette depth The distance from the back of the rosette to the front of the rosette
    0.37"
  • Face Plate The metal plate on the edge of the latch
    1" x 2-1/4" radius

DOOR MEASUREMENTS

  • Backset The distance from the edge of the door to the center of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.
    Adjustable 2-3/8" or 2-3/4"
  • Cross bore The size of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.
    2-1/8"
  • Edge bore The Edge bore* also known as the Latch Bore* is the hole drilled from the side of the door into the cross bore to accommodate for the latch or deadbolt.
    1" dia
  • Door thickness The thickness of the door that the lock is compatible with
    1-3/8" - 1-3/4"

USAGE & FEATURES

  • Finish The color of the lock
    Satin Nickel US15
  • Function Describes the function of the lock
    Entry. Outside: lock & unlock with KEY. Inside: lock & unlock with TURN PIECE
  • Usage Suggestions for where to use this lock
    Front door entrances i.e. homes, garages, etc.
  • Concealed screws Whether the screws used to mount the lockset will be visible or concealed from view after installation
    No
  • Handing Whether the handing is reversible for left hand and right hand use
    Reversible
  • Area The setting this lock is designed for
    Interior & Common area
  • Doors For what door material is this lock best suited
    Wooden & Metal

CERTIFICATION

  • ANSI The American National Standards Institute is a private non-profit organization that oversees the development of voluntary consensus standards for products* services* processes* systems* and personnel in the United States
    meets or exceeds ANSI A156.2
  • ADA American Disability Act requires "Handles* pulls* latches* locks* and other operating devices on accessible doors have a shape that is easy to grasp with one hand and does not require tight grasping* tight pinching* or twisting of the wrist to operate".
    Yes
