Designer deadbolt – square dull black

Item #: DBQ21SDB
Finishes Additional finishes are available upon request Dull Black
Finish image
Satin Brass
Finish image
Dull Black
Finish image
Satin Nickel
Finish image
Bright Chrome
Finish image
Satin Chrome
Style
Square
Function Image
Keyed Different Each lock has its separate key.
Function Image
Keyed Alike All locks have one key.

Create new list

List Name You have to provide name for your wishlist.
SAVE LIST loader

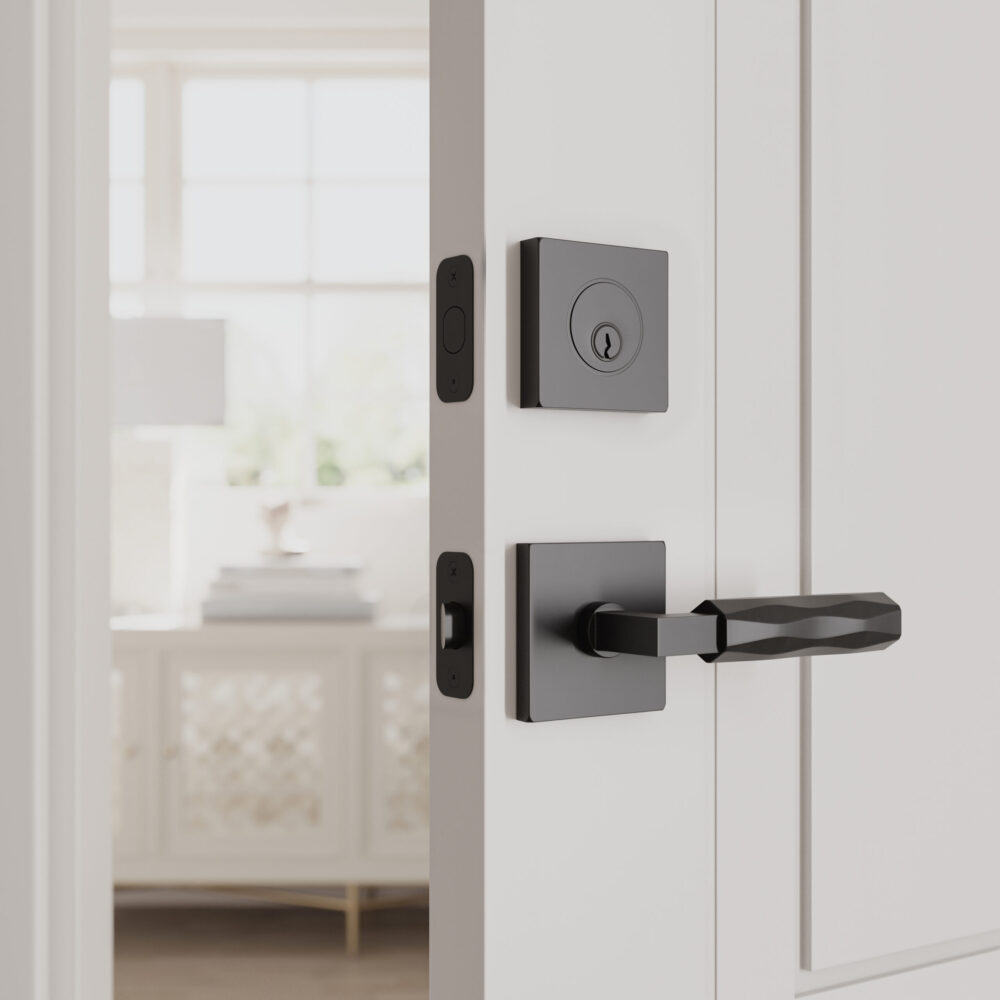

Designer Deadbolt

Sleek and slender under the finger stroke, yet strong as a tigress on the inside. The Designer Deadbolt is crafted to leave a minimal footprint on your door. Make a statement of strength and elegance each time you twist the smoothly sliding bolt into place. There’s nothing like the satisfaction of locking a bolt that looks, feels, and sounds beautiful.

Specifications

DEADBOLT MEASUREMENTS

  • Rosette height The distance from the top to the bottom of the rosette
    2.50"
  • Rosette width The distance from side to side of the rosette
    2.50"
  • Rosette depth The distance from the back of the rosette to the front of the rosette
    0.65"
  • Rosette Style The shape of the rosette
    Square
  • Face Plate The metal plate on the edge of the latch
    1" x 2-1/4" radius

DOOR MEASUREMENTS

  • Backset The distance from the edge of the door to the center of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.
    Adjustable 2-3/8" or 2-3/4"
  • Cross bore The size of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.
    2-1/8"
  • Edge bore The Edge bore* also known as the Latch Bore* is the hole drilled from the side of the door into the cross bore to accommodate for the latch or deadbolt.
    1" dia
  • Door thickness The thickness of the door that the lock is compatible with
    1-3/8" - 1-3/4"

USAGE & FEATURES

  • Finish The color of the deadbolt
    Dull Black US19
  • Concealed screws Whether the screws used to mount the deadbolt are exposed
    No
  • Area The setting the deadbolt is designed for
    Interior & Common area
  • Doors For what door material is the deadbolt best suited
    Wooden & Metal

CERTIFICATION

  • ANSI The American National Standards Institute is a private non-profit organization that oversees the development of voluntary consensus standards for products* services* processes* systems* and personnel in the United States
    meets or exceeds ANSI A156.2
  • ADA American Disability Act requires "Handles* pulls* latches* locks* and other operating devices on accessible doors have a shape that is easy to grasp with one hand and does not require tight grasping* tight pinching* or twisting of the wrist to operate".
    Yes
