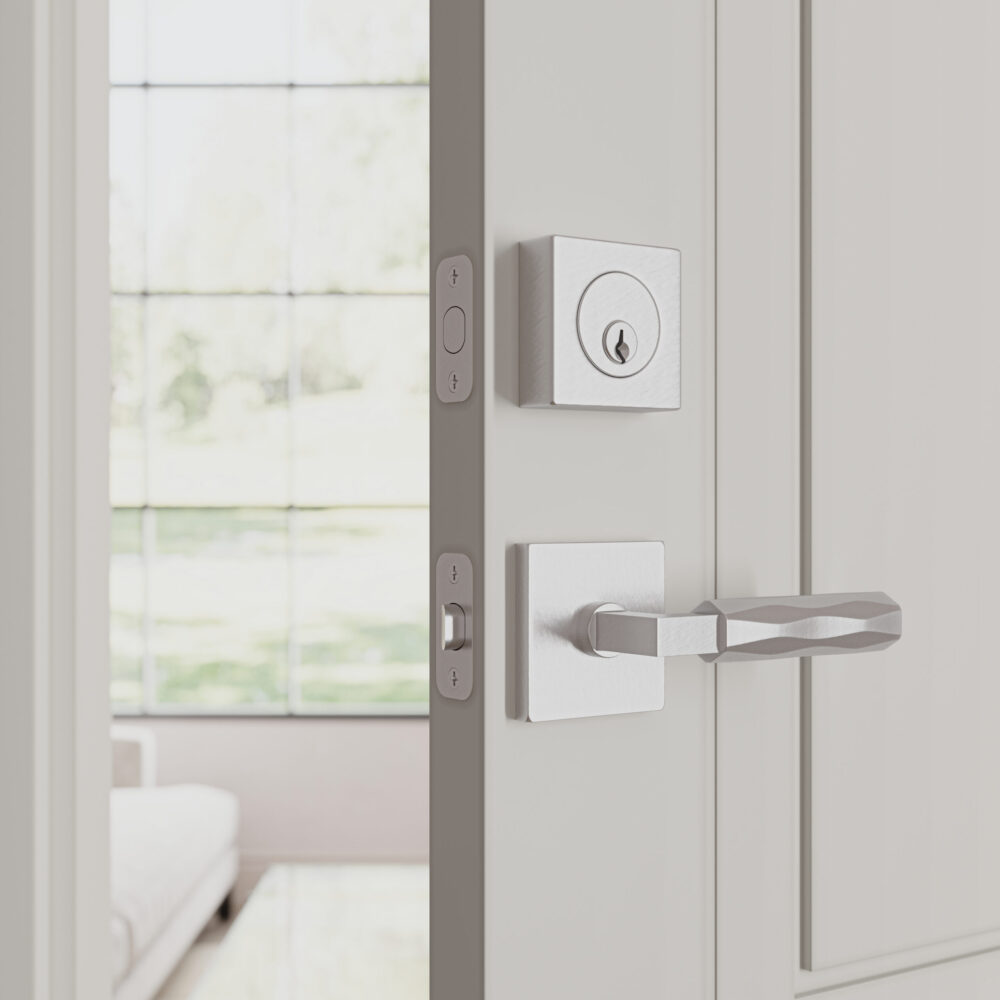

Designer deadbolt – square satin chrome

Designer deadbolt – square satin chrome

Item #: DBQ21SSC

to view price

Finishes Satin Chrome

Satin Brass

Dull Black

Satin Nickel

Bright Chrome

Satin Chrome

Shapes

Grade 3 (meets or exceeds ANSI A156.2)
ADA Compliant
Simple, standard installation
Solid-cast steel and brass construction
Durable multi-coat finish withstands antimicrobial cleaning

Designer Deadbolt

Sleek and slender under the finger stroke, yet strong as a tigress on the inside. The Designer Deadbolt is crafted to leave a minimal footprint on your door. Make a statement of strength and elegance each time you twist the smoothly sliding bolt into place. There’s nothing like the satisfaction of locking a bolt that looks, feels, and sounds beautiful.

Specifications

DEADBOLT MEASUREMENTSDEADBOLT MEASUREMENTS

Rosette height The distance from the top to the bottom of the rosette

2.50"
Rosette width The distance from side to side of the rosette

2.50"
Rosette depth The distance from the back of the rosette to the front of the rosette

0.65"
Rosette Style The shape of the rosette

Square
Face Plate The metal plate on the edge of the latch

1 x 2-1/4 radius

DOOR MEASUREMENTSDOOR MEASUREMENTS

Backset The distance from the edge of the door to the center of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.

Adjustable 2-3/8 or 2-3/4
Cross bore The size of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.

2-1/8"
Edge bore The Edge bore* also known as the Latch Bore* is the hole drilled from the side of the door into the cross bore to accommodate for the latch or deadbolt.

1" dia
Door thickness The thickness of the door that the lock is compatible with

1-3/8 - 1-3/4

USAGE & FEATURES

Finish The color of the deadbolt

Satin Chrome US26D
Concealed screws Whether the screws used to mount the deadbolt are exposed

No
Area Suggestions for where to use this lock

Interior & Common area
Doors For what door material is the deadbolt best suited

Wooden & Metal

CERTIFICATION

ANSI The American National Standards Institute is a private non-profit organization that oversees the development of voluntary consensus standards for products* services* processes* systems* and personnel in the United States

meets or exceeds ANSI A156.2
ADA American Disability Act requires Handles* pulls* latches* locks* and other operating devices on accessible doors have a shape that is easy to grasp with one hand and does not require tight grasping* tight pinching* or twisting of the wrist to operate.

Yes
