Outside:
lock and unlock with key
Inside:
lock and unlock with turn piece
Usage:
front door entrances i.e. homes, garages etc.
Area:
Interior & Commercial
Outside:
unlock with emergency pin only.
Inside:
lock with push button.
Usage:
bedrooms, bathrooms, dressing rooms, etc.
Area:
interior
Outside/Inside:
gives you free access with no locking function. It has turning levers on both sides.
Usage:
closets with single doors, children bedrooms
Area:
interior
Outside/Inside:
no-function. Used to pull door open.
Usage:
aesthetics, double door closets, etc.
Area:
interior
Create new list
List Name
You have to provide name for your wishlist.
SAVE LIST
5100
Devini

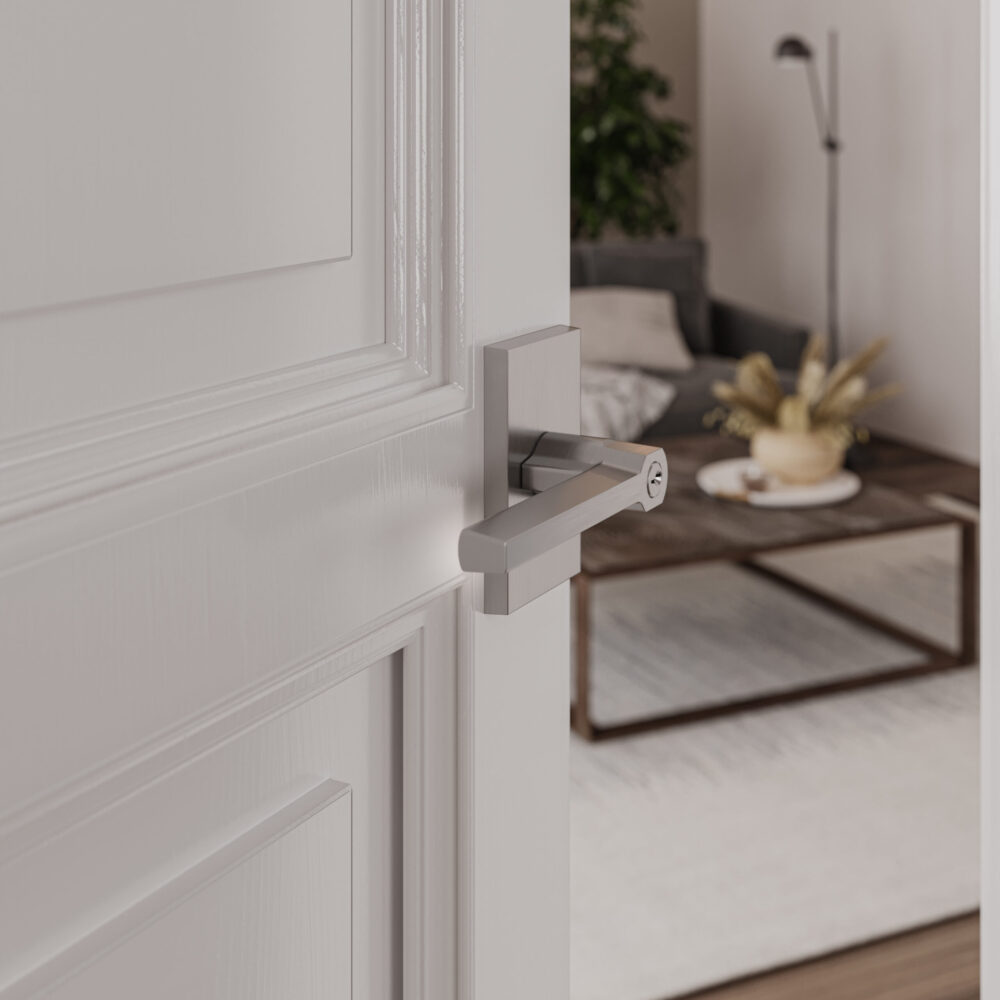

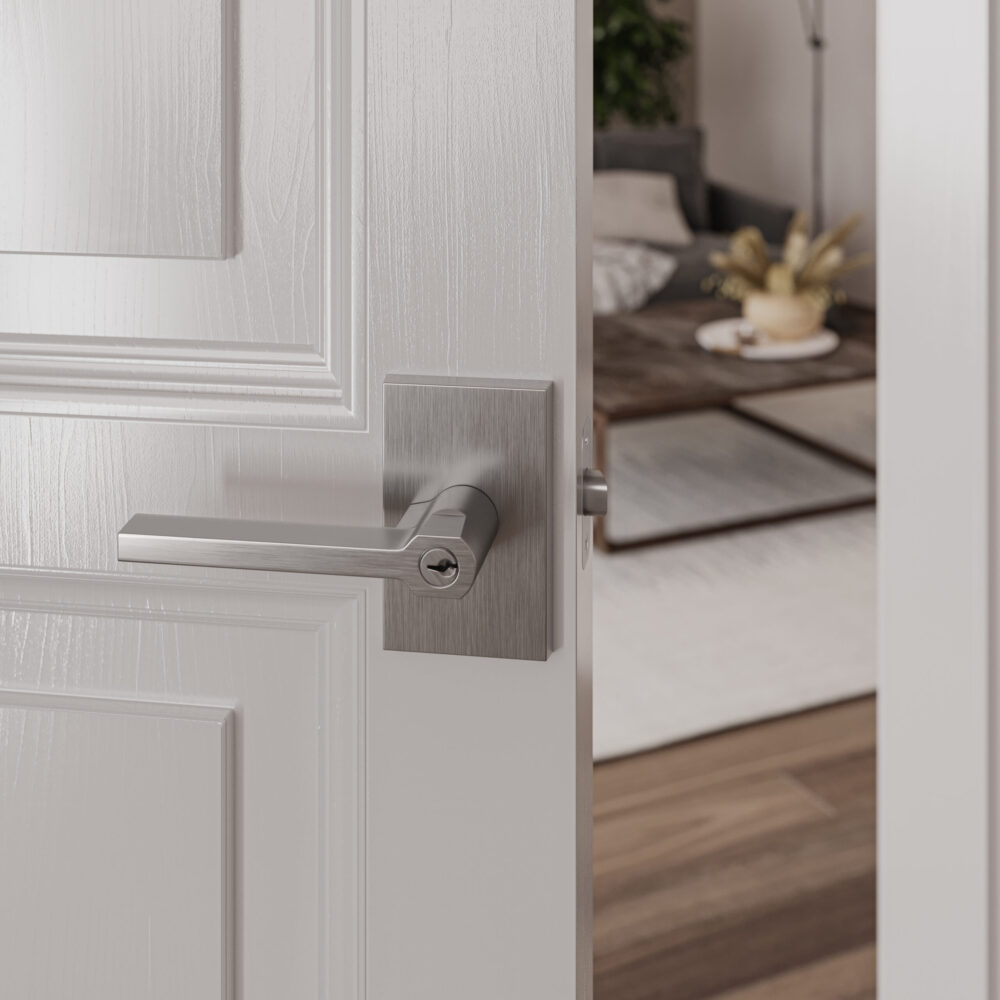

Devini embodies the fresh, stylish aesthetic of today’s interior looks. Its sleek linear structure adds an upscale, restrained touch to the modern home. The crisp lines and soft matte finish work together to exude a distinctly chic vibe.
Specifications
LOCK MEASUREMENTS
-
Lever lentgh The distance of the longest side of the handle5"
-
Lever projection The distance from the door surface to the most outward point of the handle2.52"
-
Lever clearance The distance from the door surface to the most inward point of the handle1.81"
-
Rosette height The distance from the top to the bottom of the rosette3.98"
-
Rosette width The distance from side to side of the rosette2.48"
-
Rosette depth The distance from the back of the rosette to the front of the rosette0.39"
-
Face plate The metal plate on the edge of the latch1-3/8" - 1-3/4"
DOOR MEASUREMENTS
-
Backset The distance from the edge of the door to the center of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.Adjustable 2-3/8" or 2-3/4"
-
Cross bore The size of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.2-1/8"
-
Edge bore The Edge bore* also known as the Latch Bore* is the hole drilled from the side of the door into the cross bore to accommodate for the latch or deadbolt.1" dia
-
Door thickness The thickness of the door that the lock is compatible with1-3/8" - 1-3/4"
USAGE & FEATURES
-
Finish The color of the lockSatin Nickel US15
-
Function Describes the function of the lockEntry. Outside: lock & unlock with KEY. Inside: lock & unlock with TURN PC
-
Usage Suggestions for where to use this lockFront door entrances i.e. homes, garages, etc.
-
Concealed screws Whether the screws used to mount the lockset will be visible or concealed from view after installationNo
-
Handing Whether the handing is reversible for left hand right hand useReversible
-
Area The setting this lock designed forInterior & Common area
-
Doors For what door material is this lock best suitedWooden & Metal
CERTIFICATION
-
ANSI The American National Standards Institute is a private non-profit organization that oversees the development of voluntary consensus standards for products* services* processes* systems* and personnel in the United Statesmeets or exceeds ANSI A156.2
-
ADA American Disability Act requires "Handles* pulls* latches* locks* and other operating devices on accessible doors have a shape that is easy to grasp with one hand and does not require tight grasping* tight pinching* or twisting of the wrist to operate".Yes
