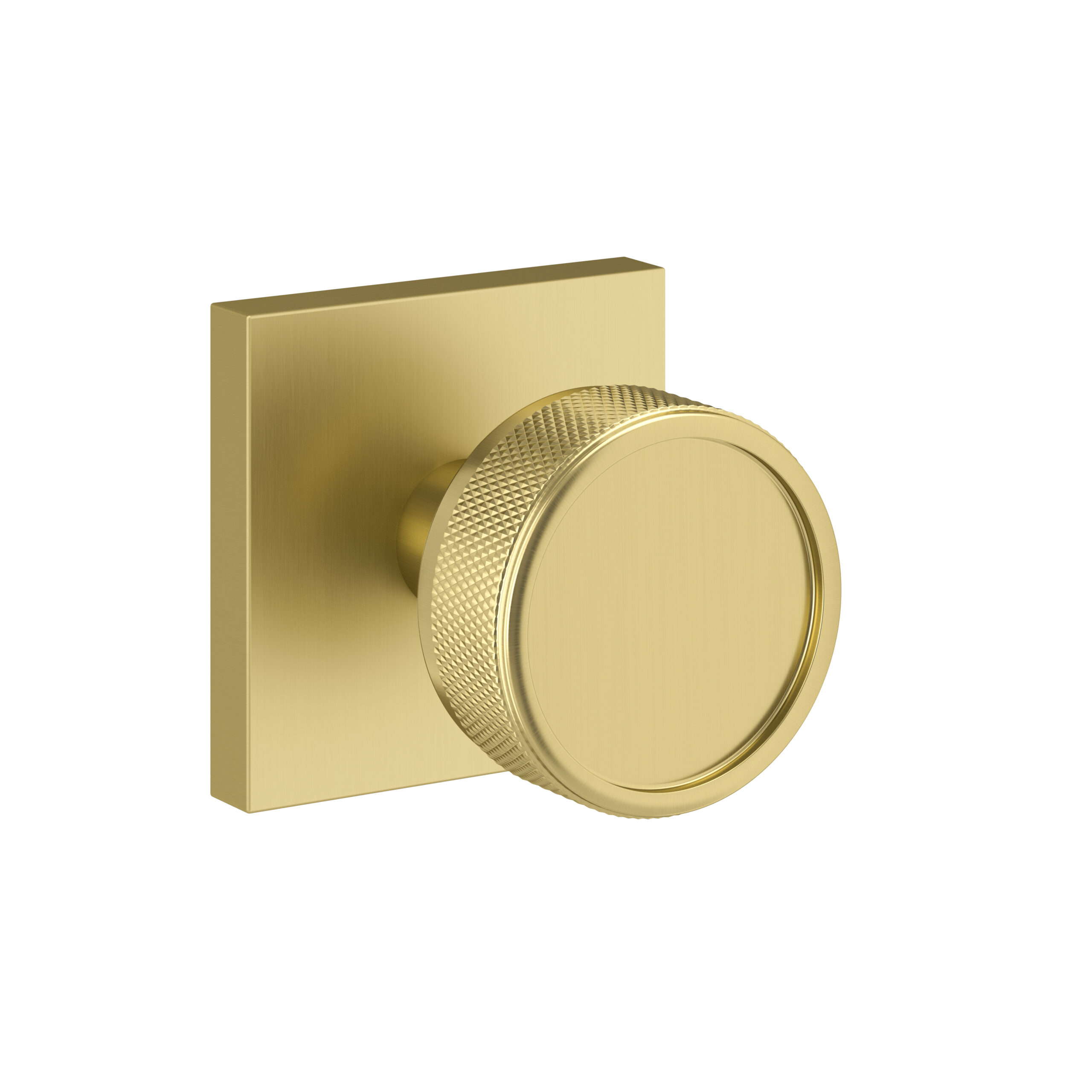

Ember square rosette dummy satin brass knob

Item #: LCQK20USB

Coming Soon

to view price

Finishes Satin Brass

Dull Black

Satin Brass

Bright Chrome

Satin Nickel

Functions

Privacy

Passage

Dummy

K200
Ember

Meet Ember, a highlight of our knurled collection. A hallmark of sophistication that elevates both form and function. Exceptional craftsmanship- precision engineered for enduring beauty and performance. Versatile design seamlessly integrates with a diverse range of interior style, from contemporary to classic.

Specifications

LOCK MEASUREMENTS

Lever Length The distance of the longest side of the handle

2.45"
Lever projection The distance from the door surface to the most outward point of the handle

2.84"
Lever Clearance The distance from the door surface to the most inward point of the handle

1.45"
Rosette height The distance from the top to the bottom of the rosette

2.45"
Rosette width The distance from side to side of the rosette

2.45
Rosette depth The distance from the back of the rosette to the front of the rosette

0.39"
Face Plate The metal plate on the edge of the latch

1" x 2-1/4" radius

DOOR MEASUREMENTS

Backset The distance from the edge of the door to the center of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.

Adjustable 2-3/8" or 2-3/4"
Cross bore The size of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.

2-1/8"
Edge bore The Edge bore* also known as the Latch Bore* is the hole drilled from the side of the door into the cross bore to accommodate for the latch or deadbolt.

1" dia
Door thickness The thickness of the door that the lock is compatible with

1-3/8" - 1-3/4"

USAGE & FEATURES

Finish The color of the lock

Satin Brass US4
Function Describes the function of the lock

Dummy. Lever or Knob with no function
Usage Suggestions for where to use this lock

Aesthetics, double door closets, etc.
Concealed screws Whether the screws used to mount the lockset will be visible or concealed from view after installation

Yes
Handing Whether the handing is reversible for left hand and right hand use.

Reversible
Area The setting this lock designed for

Interior
Doors For what door material is this lock best suited

Wooden

CERTIFICATION

ANSI The American National Standards Institute is a private non-profit organization that oversees the development of voluntary consensus standards for products* services* processes* systems* and personnel in the United States

meets or exceeds ANSI A156.2
ADA American Disability Act requires "Handles* pulls* latches* locks* and other operating devices on accessible doors have a shape that is easy to grasp with one hand and does not require tight grasping* tight pinching* or twisting of the wrist to operate".

Yes
