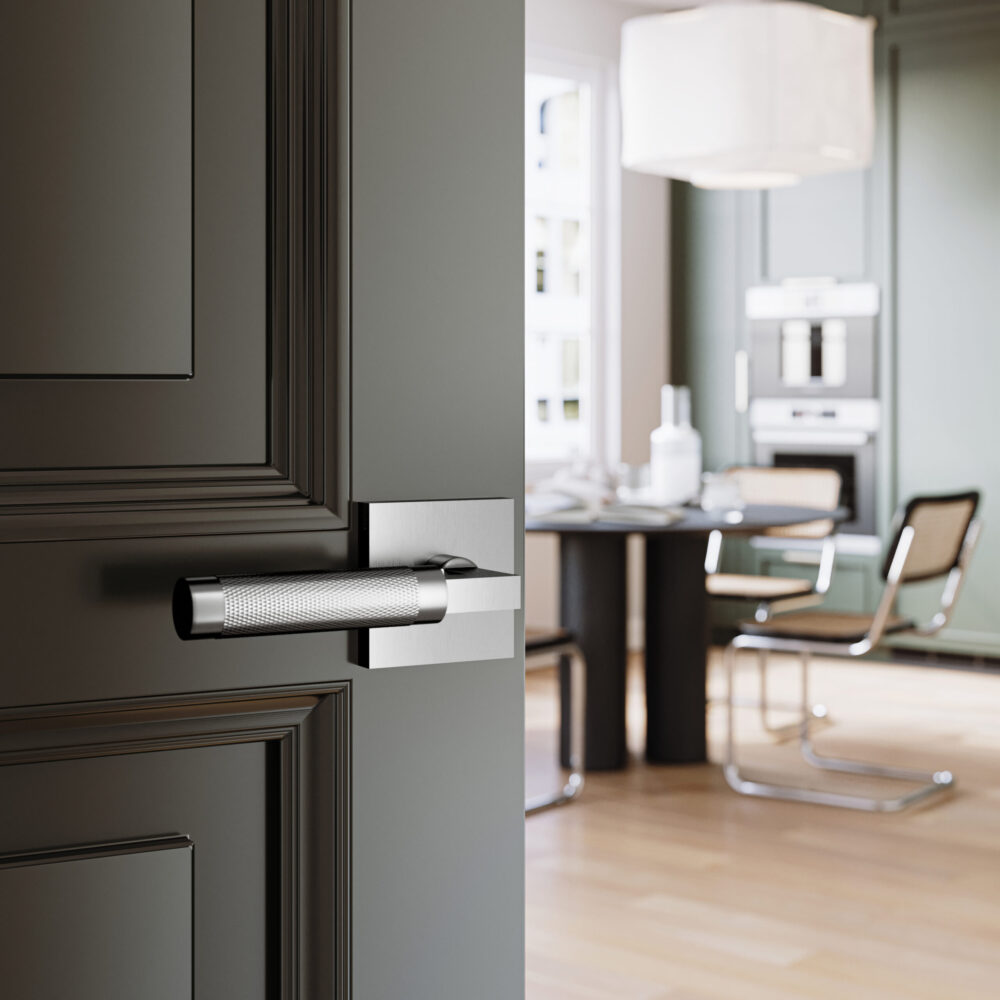

Nova square rosette privacy satin nickel lever
Item #: LCQ58RSN
Coming Soon
Expected availability: mid to late December.
Login to view price
Finishes
Additional finishes are available upon request
Satin Nickel
Privacy
Inside: lock with push button . [when locked it can be unlocked from the outside with an emergency pin].
Outside:
unlock with emergency pin only.
Inside:
lock with push button.
Usage:
bedrooms, bathrooms, dressing rooms, etc.
Area:
interior
Passage
Gives you free access with no locking function. It has turning levers on both sides.
Outside/Inside:
gives you free access with no locking function. It has turning levers on both sides.
Usage:
closets with single doors, children bedrooms
Area:
interior
Dummy
DUMMY Lever or Knob with no function
Outside/Inside:
no-function. Used to pull door open.
Usage:
aesthetics, double door closets, etc.
Area:
interior
Keyed Different
Each lock has its separate key.
Keyed Alike
All locks have one key.
Create new list
List Name
You have to provide name for your wishlist.
SAVE LIST
5800
Nova
Meet Nova, a highlight of our knurled collection. A hallmark of sophistication that elevates both form and function. Exceptional craftsmanship- precision engineered for enduring beauty and performance. Versatile design seamlessly integrates with a diverse range of interior style, from contemporary to classic.
Specifications
LOCK MEASUREMENTS
-
Lever Length The distance of the longest side of the handle5.18"
-
Lever projection The distance from the door surface to the most outward point of the handle2.58"
-
Lever Clearance The distance from the door surface to the most inward point of the handle1.73"
-
Rosette height The distance from the top to the bottom of the rosette2.50"
-
Rosette width The distance from side to side of the rosette2.50"
-
Rosette depth The distance from the back of the rosette to the front of the rosette39"
-
Face Plate The metal plate on the edge of the latch1" x 2-1/4" Radius
DOOR MEASUREMENTS
-
Backset The distance from the edge of the door to the center of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.Adjustable 2-3/8" or 2-3/4"
-
Cross bore The size of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.2-1/8"
-
Edge bore The Edge bore* also known as the Latch Bore* is the hole drilled from the side of the door into the cross bore to accommodate for the latch or deadbolt.1" dia
-
Door thickness The thickness of the door that the lock is compatible with1-3/8" - 1-3/4"
USAGE & FEATURES
-
Finish The color of the lockSatin Nickel US15
-
Function Describes the function of the lockPrivacy. Inside: locked with push button . [when locked it can be unlocked from the outside with an emergency pin].
-
Usage Suggestions for where to use this lockBedrooms, bathrooms, dressing rooms
-
Concealed screws Whether the screws used to mount the lockset will be visible or concealed from view after installationNo
-
Handing Whether the handing is reversible for left hand and right hand use.Reversible
-
Area The setting this lock designed forInterior
-
Doors For what door material is this lock best suitedWooden
CERTIFICATION
-
ANSI The American National Standards Institute is a private non-profit organization that oversees the development of voluntary consensus standards for products* services* processes* systems* and personnel in the United Statesmeets or exceeds ANSI A156.2
-
ADA American Disability Act requires "Handles* pulls* latches* locks* and other operating devices on accessible doors have a shape that is easy to grasp with one hand and does not require tight grasping* tight pinching* or twisting of the wrist to operate".Yes
