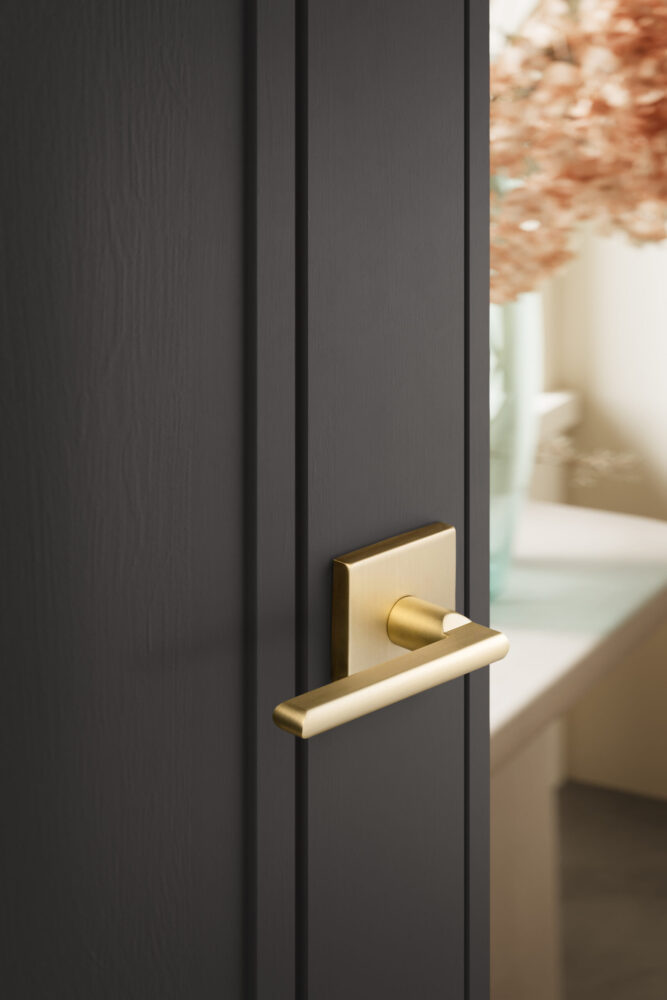

Tafele passage satin brass lever

Item #: LC42ASB

to view price

Finishes Satin Brass

Satin Nickel

Flat Black

Dull Black

Bright Chrome

Satin Brass

Functions

Entry Outside: lock & unlock with KEY. Inside: lock & unlock with TURN PIECE

Outside: lock and unlock with key Inside: lock and unlock with turn piece Usage: front door entrances i.e. homes, garages etc. Area: Interior & Commercial

Privacy Inside: lock with push button . [when locked it can be unlocked from the outside with an emergency pin].

Outside: unlock with emergency pin only. Inside: lock with push button. Usage: bedrooms, bathrooms, dressing rooms, etc. Area: interior

Passage Gives you free access with no locking function. It has turning levers on both sides.

Outside/Inside: gives you free access with no locking function. It has turning levers on both sides. Usage: closets with single doors, children bedrooms Area: interior

Dummy DUMMY Lever or Knob with no function

Outside/Inside: no-function. Used to pull door open. Usage: aesthetics, double door closets, etc. Area: interior

Storeroom ALWAYS LOCKED ON THE OUTSIDE. ENTER with key only. INSIDE cannot be locked.

Outside: always locked. Unlocked with key only., cannot be locked. Inside: cannot be locked. Usage: storage-rooms, janitorial supply rooms, utility-rooms including meter rooms for electrical, gas, water etc. Area: Interior & Commercial

4200
Tafele

With its clean-lined rosette and well-contoured lever, Tafele is a beautiful expression of the Bauhaus design movement. Though simple in form, take a moment to appreciate the subtleties of the lever design: the gentle notch; the seamless transition between the linear and rounded elements; the final fluid curve. Tafele is designed for the truly sophisticated homeowner.

Specifications

LOCK MEASUREMENTS

Lever Length The distance of the longest side of the handle

4.65"
Lever projection The distance from the door surface to the most outward point of the handle

2.3"
Lever Clearance The distance from the door surface to the most inward point of the handle

1.67"
Rosette height The distance from the top to the bottom of the rosette

2.62"
Rosette width The distance from side to side of the rosette

2.62"
Rosette depth The distance from the back of the rosette to the front of the rosette

0.37"
Face Plate The metal plate on the edge of the latch

1” x 2-1/4” radius

DOOR MEASUREMENTS

Backset The distance from the edge of the door to the center of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.

Adjustable 2-3/8" or 2-3/4"
Cross bore The size of the cross bore hole. The cross bore is the main hole drilled into the face of the door where the body of the lock is installed.

2-1/8"
Edge bore The Edge bore* also known as the Latch Bore* is the hole drilled from the side of the door into the cross bore to accommodate for the latch or deadbolt.

1" dia
Door thickness The thickness of the door that the lock is compatible with

1-3/8" - 1-3/4"

USAGE & FEATURES

Finish The color of the lock

Satin Brass US4
Function Describes the function of the lock

Passage. Gives you free access with no locking function. It has turning levers on both sides.
Usage Suggestions for where to use this lock

Closets with single doors, childrens bedrooms, anywhere where no privacy is needed.
Concealed screws Whether the screws used to mount the lockset will be visible or concealed from view after installation

Yes
Handing Whether the handing is reversible for left hand and right hand use.

Reversible for left hand and right hand use
Area The setting this lock designed for

Interior
Doors For what door material is this lock best suited

Wooden

CERTIFICATION

ANSI The American National Standards Institute is a private non-profit organization that oversees the development of voluntary consensus standards for products* services* processes* systems* and personnel in the United States

meets or exceeds ANSI A156.2
ADA American Disability Act requires "Handles* pulls* latches* locks* and other operating devices on accessible doors have a shape that is easy to grasp with one hand and does not require tight grasping* tight pinching* or twisting of the wrist to operate".

Yes
